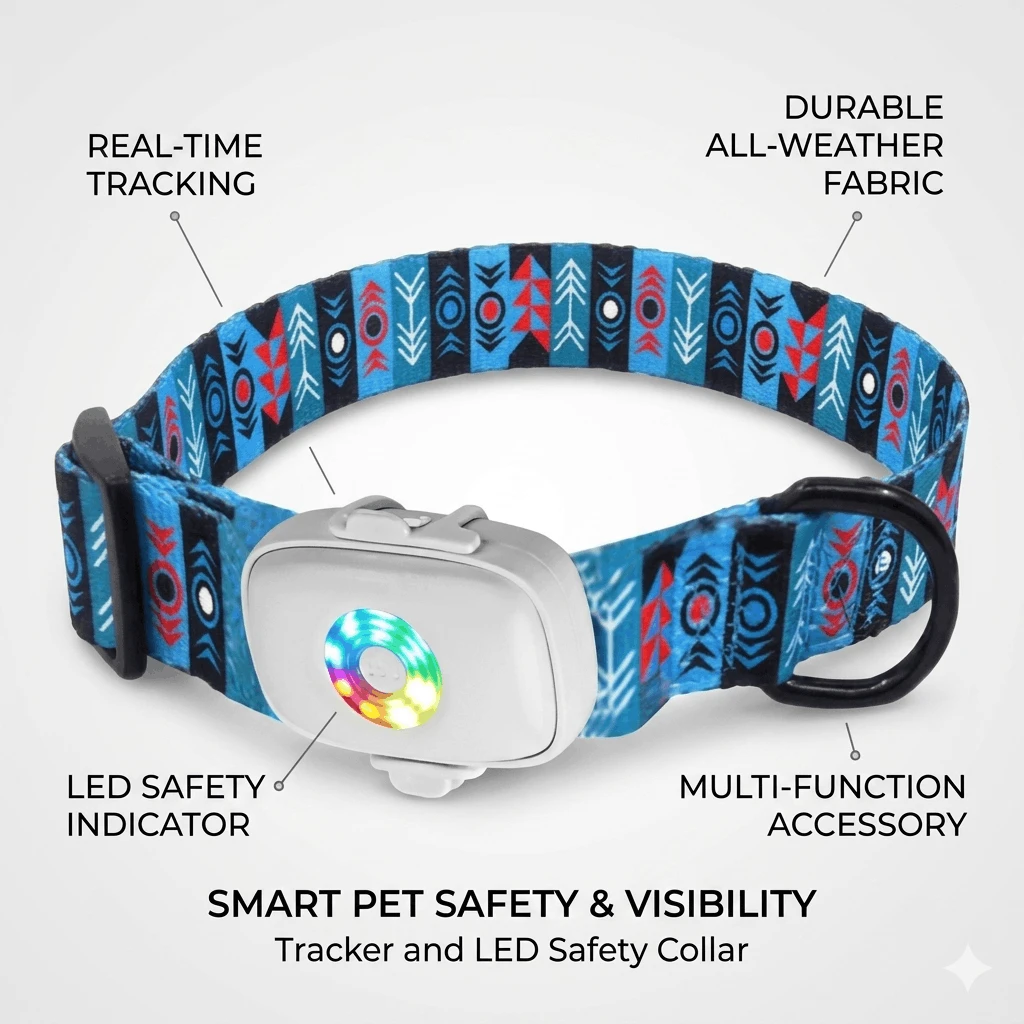

The description of puppy gps tracker
GPS Pet Locator uses Global Positioning System (GPS), Bluetooth and Wi-Fi technology to provide real-time location services. With a GPS, Wi-Fi or Bluetooth connection, pet owners can check their pet's location on their mobile App at any time, which can help quickly retrieve their pet if it goes out or gets lost, it is a smart device of real time pet tracker.
The parameters of dog gps tracker
| Product Model | GPS device-01 |
| Cat M1&Cat NB1 | QUECTEL BG96 |
| LTE FDD | B1 B2 B3 B4 B5 B8 B12 B13 B18 B19 B20 B26 B28 |
| LTE TDD | B39 (for Cat M1 only) |
| EGRPS | 850/900/1800/1900MHz |
| GPRS transmit by | TCP/IP |
| Working voltage | 3.4-4.2V DC |
| GNSS accuracy | ≤2.5m (CEP50) |
| GNSS | GPS,GLONASS,Beidou,Gailileo,QZSS |
| GNSS sensitivity: cold start | -146 dbm, reacquisition -157dbm, |
| tracking | -157 dbm |
| GNSS start time : cold start TTFF | <31s,warm start TTFF<21s, |
| Working temperature | -20℃~+70℃ |
| Working humidity | 20%~80%RH |
| Waterproof | IP66 |
| Color | black and white |
| Dimension | 60*40*21mm |
| Battery | 850mAh |
Power concumption
≈60uAh when stopped
≈80mAh when moving
Functions
Support LTE CATM1+EGPRS data transfer
Built-in high sensitivity GPS + AGPS rapid positioning
Support AT commands for easy and fast development
Communicated via SMS/TCP
Historical track and playback
OTA firmware upgrading
Data buffer storage 100 points
Support 3 aixs accelerometer
Support Geo-fencing function
Find the pet ( led light flash and buzzer)
SOS alarm
Low power / overspeed / vibration alarm
Group management
Mileage statistics
Support flexible working mode
Mode 0: safe mode. Update by every 20s,will enter sleep mode when stops for 5minutes,will work immediately when moving.
Mode 1:works by every 10minutes
Mode 2:super power saving mode. It can work once a day or twice a day. The work time can be set.
Mode 3,power saving mode. It can work by every 1/2/3/4/6/8/12/24hours since the time you set.
Mode 4,it starts to work at the time you set,it will enter into sleep after command.
How to custom pet tracker?
1. This product adopts 4G technology to ensure the stability of the product.
This product supports OEM, the minimum order quantity is 100 sets, and the APP platform tracking system can be shared without extra cost, but this product needs to buy a card, and there is a fixed monthly fee every month, which depends on the consumer. The data card can be purchased locally or provided by our company.
2. If the customer wants to develop a new style and have their own APP, the development cost is quite high, because it is not recommended to do ODM for this product
FAQ
Q: How does a pet locator work?
A: Pet locator is mainly located by GPS, Wi-Fi, base station (LBS) and other technologies. GPS technology uses satellite signals to determine a pet's global location. Wi-Fi and base station technology assist positioning indoors or in environments where GPS signals are weak.
Q: What are the main functions of pet locator?
A: The main functions of the pet locator include real-time positioning, historical track playback, electronic fence setting, activity monitoring and health analysis, two-way voice communication, and alarm alerts.
Q: How does the pet locator's electronic fence function work?
A: The electronic fence function allows the owner to set up a virtual safe area on the App, and once the pet leaves the area, the locator will immediately send an alarm notification to the owner
Our Advantages
1.We have strong production capacity to ensure on-time delivery
2.We have strict quality control system to ensure quality
3.We have a research and development design team, at any time to further design
4.We have a complete after-sales service system
